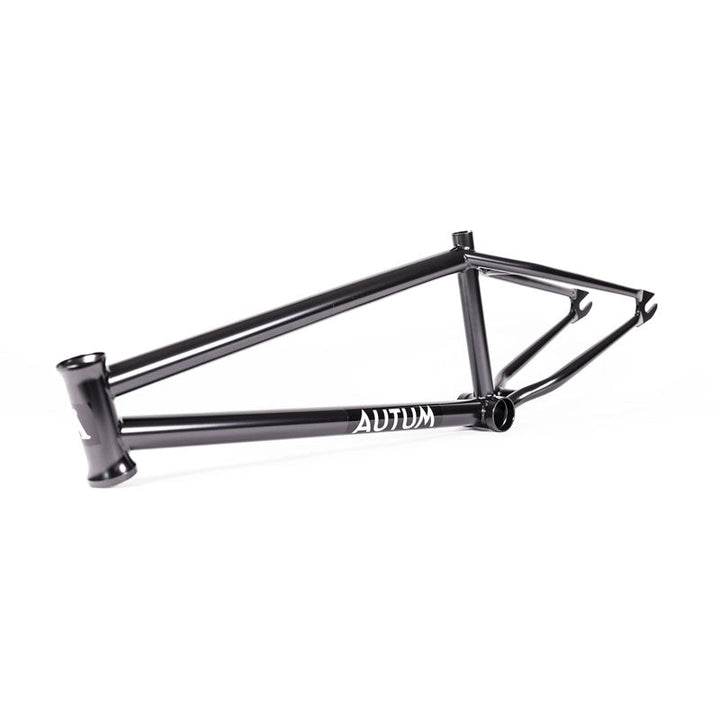

Autumn The Katze V2 Frame

material: finest 4130 CrMo Japanese sanko tubing
toptube length: choose the available TT length in the size menu above
head tube angle: 75.5 degrees
seat tube angle: 72.5 degrees
chainstay length: 13 inches (slammed) bottom bracket height: *
standover height: 8.66 inches

headtube: compatible with integrated headsets (45/45)
bottom bracket: mid
seat tube: fits 1 inch seatposts
dropouts: 14mm slots (incl. 10mm spacers)
downtube gusset: no
top tube gusset: no

tire clearance: *
brake mounts: choose the available option in the option menu above
gyro tab holes: yes

additional information:
Integrated chain tensioners
