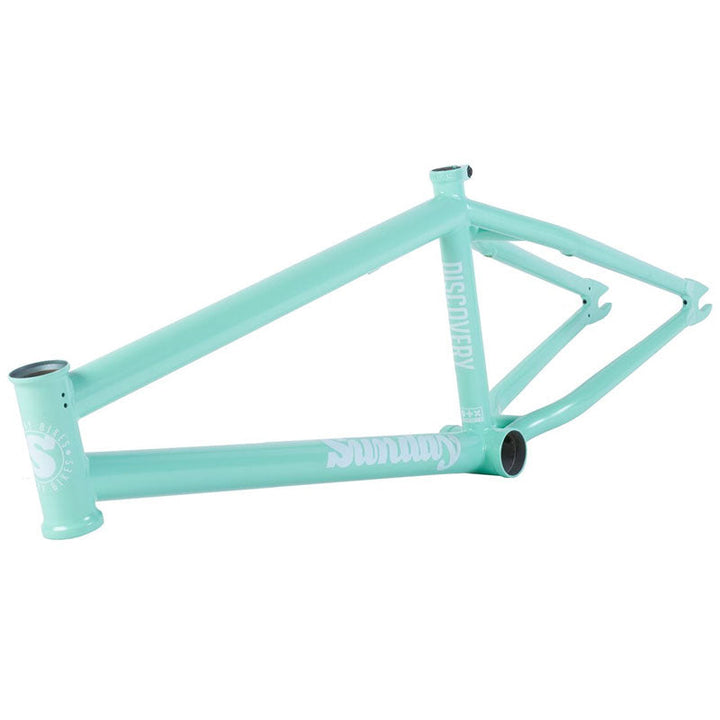

Sunday Discovery Frame

material: Post-weld Heat treated 4130 Chromoly
top tube length: 20,75 inch
head tube angle: 75 degrees
head tube length: 127mm
seat tube angle: 71 degrees
chainstay length: 13,25 (slammed) - 13,5 inch
bottom bracket height: 11,8 inch
standover height: 9 inch

head tube: compatible with integrated headsets (45/45) | heat treated
bot tom bracket: mid | machined | post weld
seat tube: fits 1 inch (25,4mm) seat posts
dropouts: 14mm slots | hollow | removable integrated chain tensioners | 8mm thick
down tube gusset: yes (internal)
top tube gusset: yes (internal)

tire clearance: 20 x 2,4 inch
brake mounts: removable on seatstay (included)
gyro tab holes: yes (tabs included)

additional information:
5 inch tall headtube
branded end cap
