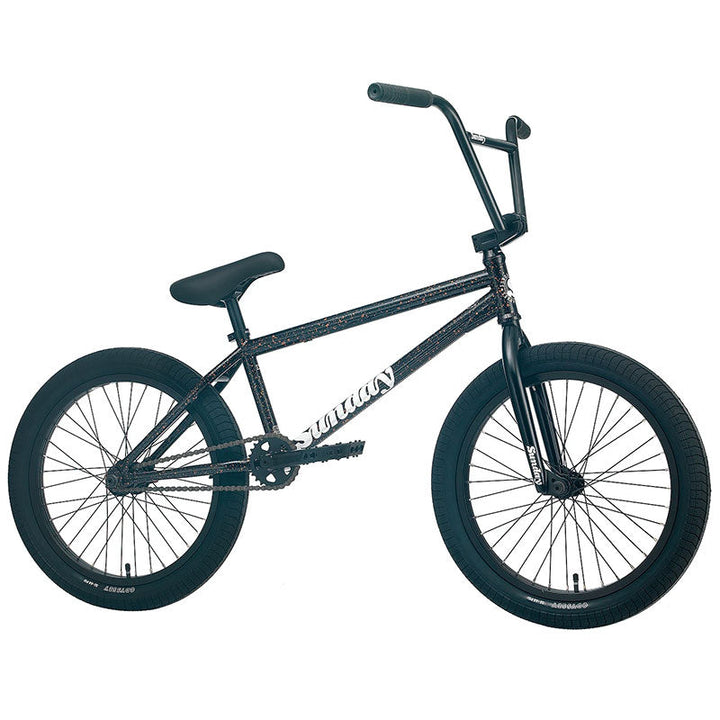

Sunday EX Complete

Erik Elstran Signature

frame: 100 % chromoly wave DT and removable brake hardware
top tube length: 20,75 inch
head tube angle: 75 degrees
seat tube angle: 71 degrees
chain stay length: 13,2 - 13,5 inch
bottom bracket height: 11,5 inch
stand over height: 9 inch

forks: full chromoly | 2pc steerer | 25m offset
bars: Sunday | full chromoly | 9 inch rise | 29 inch wide | 12 degrees backsweep | 3 degrees upsweep | 4pc
stem: Sunday Freeze | 48 mm reach | topload
headset: FSA integrated | w/2mm alloy spacer
grips: Sunday Jake Seeley
bar ends: Odyssey

front hub: Sunday | sealed | 3/8 (10mm) inch female axle | 36H
rear hub: Odyssey Clutch V2 | sealed | freecoaster | 9t | female axle | 36H
front rim: Sunday Lightning | 36H
rear rim: Sunday Lightning | 36H
front tire: Odyssey Path Pro OEM | 20 inch diameter | 2,4 inch width
rear tire: Odyssey Path Pro OEM | 20 inch diameter | 2,4 inch width

cranks: Sunday Saker | 165 mm
bb: 19 mm | sealed | mid
sprocket: Sunday Sabertooth V2 | 25T | 6061 aluminum
chain: KMC Z1 wide
pedals: Odyssey Twisted Pro | plastic
gearing: 25 x 9

seat: Sunday Badge | pivotal
seat post: Sunday pivotal | 25,4 mm
seat post clamp: Sunday

brake: Odyssey Springfield U-brake
brake cable: Odyssey Quik Slic
brake lever: Odyssey Springfield

pegs: not included
color: gloss copper drop
